Name ：LJ208 Two-sided Hydraulic Pressing Machine
Model: LJ208
Brand: LIJIA
http://v.youku.com/v_show/id_XMzk1ODE3MzMy.html
LJ208 Two-sided Hydraulic Pressing Machine online video operation address:
http://v.youku.com/v_show/id_XMzk1ODE3MzMy.html
Specifications：

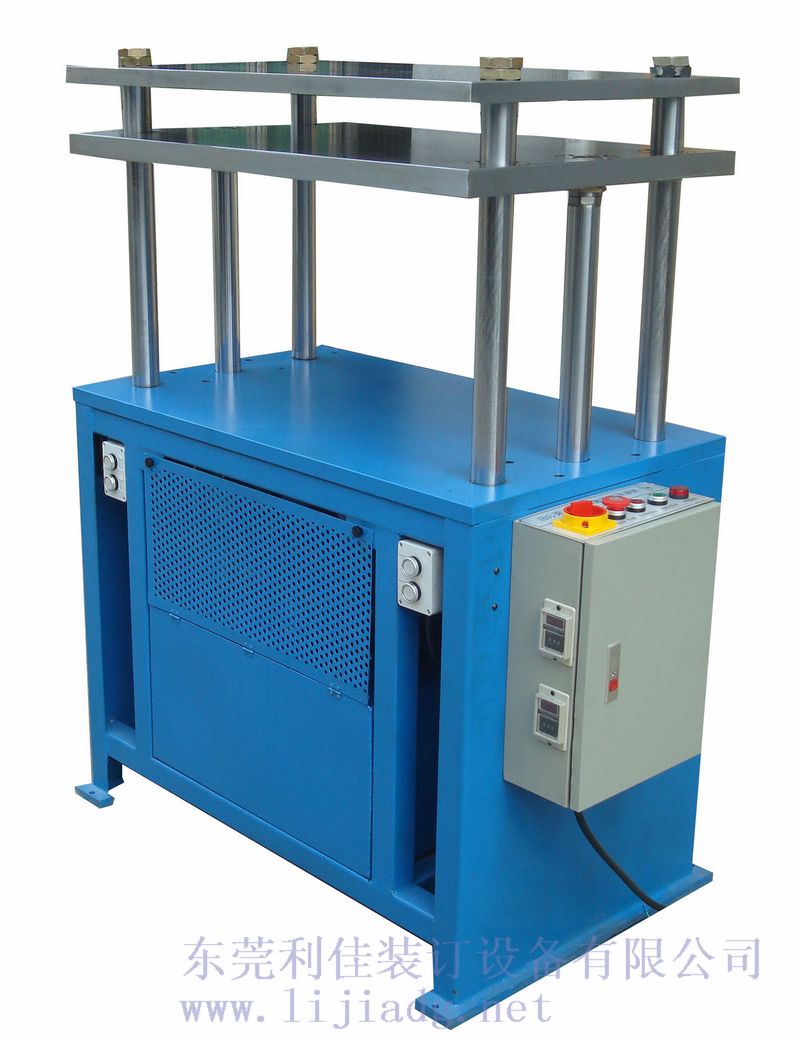

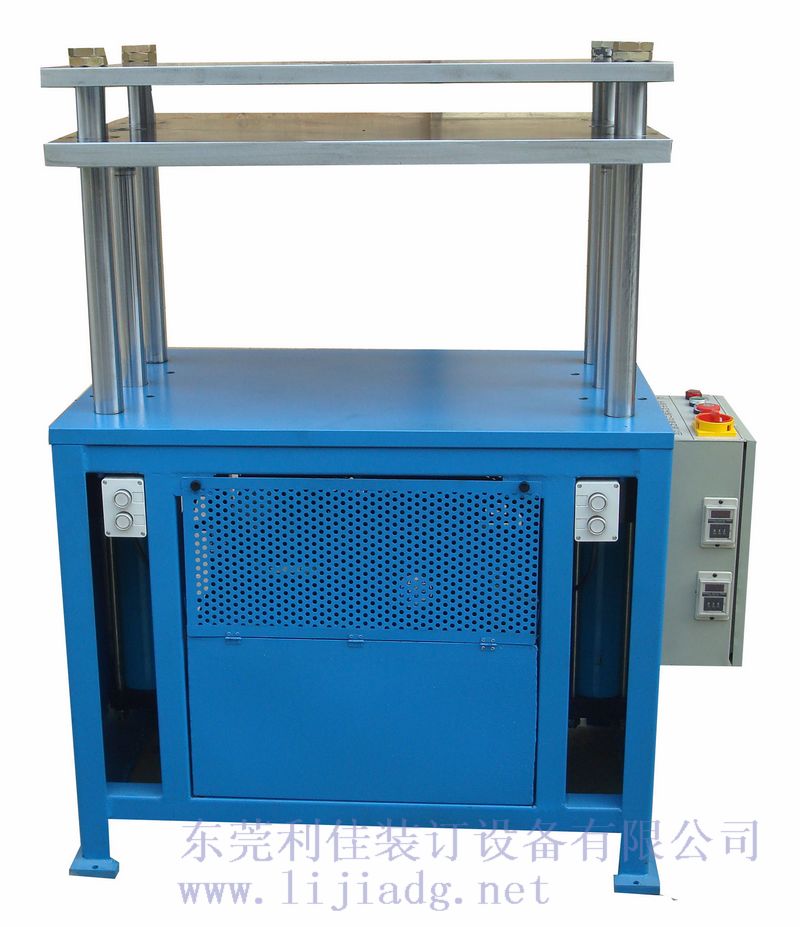

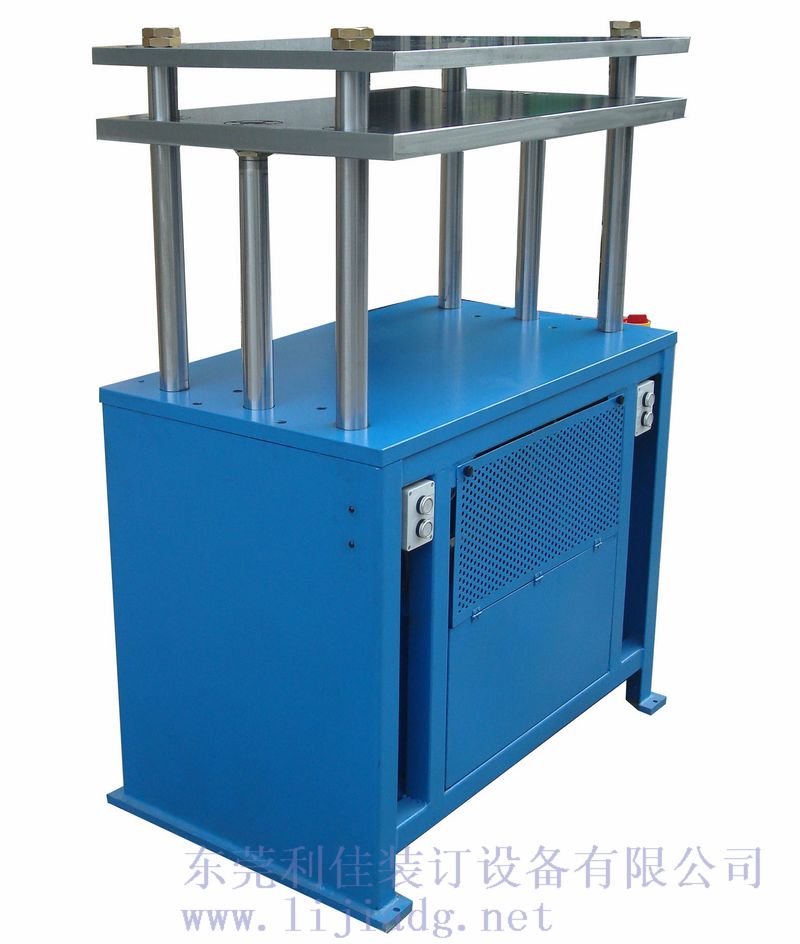

LJ208 Two-sided Hydraulic pressing machine the most important feature is two
cylinders located on both sides of the body to drive the movable platen up and
down, Formed the area of pressure book in the middle of the two cylinder, can
pressing up and down, thus improving the production efficiency.
This machine adopts hydraulic mode. The pressure can be adjustment, books'
pressure time is adjustment. With adjustable stroke and holding pressure when
stop and other functions.
structure. Also easy to operate. It is one of the best machine that all need to
pressed flat occasions.
The Main Technical Parameters:
Model
LJ208
Max.Work Pressure
10T
Working Travel
400mm
Area of Pressing Board
600*800 mm（Pressure up and down）
Book Thickness
100mm—500mm
Power Requirement
380V，3Phase
Motor Power
3.7kw
Dimensions
L1000*W600*H1400mm
Net Weight
750kg
About LiJia Factory:
Established in 2004. Dongguan LiJia Binding Equipment Co., Ltd located in
Chang’an Town, Dongguan city, Guangdong province, China
professional producing of post-press finishing manufacturer in China, Our main
products are Hardcover Cashing-in machine, book block rounding machine, Book
corner cutting machine, Book block ridging machine, book pressing machine,
Hydraulic book packing machine, paperboard slitter, paperboard
cross cutter and so on.
Since established, Our Company always adhere of “Best service, Best quality”
the core idea. And strive to bring customers the best quality and best service.
The company development and design's product, like Book Block Rounding
Machine, book block ridge machine, hydraulic cutting two horns machine and
other products are domestic initiative, Has been successfully applied for national
patents, was the best cost-effective in the similar products. Also can make to
order as each kind of machine according to the customer’s requirement.
We will continue to be customer oriented, to the best quality and service to win
the trust of customers and work!
